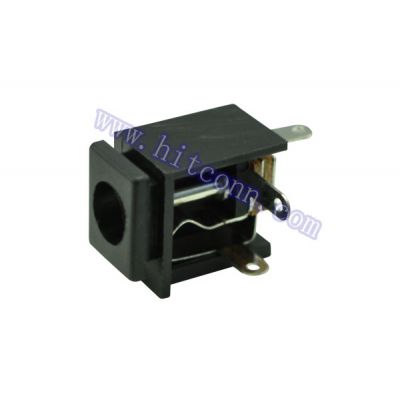

| 品牌：皓业，HITCONN | 型号：DC-009C | 类型：DC JACK |
| 孔位数：1个 | 额定电流：2.5A | 壳体材质：PBT |
| 导电体材质：黄铜，磷铜 | 有效负载：250KW | 产品认证：ROHS REACH |
| 加工定制：是 | 物料编号：DC-009C | 耐压：500V |
| Specification | 銆� |
| Name | DC JACK |
| Gender | Femail |
| Application | Consumer electronics |
| Electrical Spec | 銆� |
| Contact Resistance m惟 | 鈮�50m惟 |
| Withstand Voltage | AC 250V(50Hz)/1min |
| Insulation Resistance | 鈮� 100M惟 @ 250 V dc |
| Rating | DC 0.***~2.0A 30V |
| Mechanical Spec | 銆� |
| Insertion & Extraction Force | 3 锝� 20N |
| Operation Force | > 5000 Cycles |
| Operationg Temperature | -20鈩� to +70鈩� |
| Storage Temperature | -40鈩� to +85鈩� |
| Environmental Protection | 銆� |
| Complies with | RoHS & Reach |
| Solderability | Auto 260卤5鈩�/ 3 sec锛汳anual 350卤10鈩�/3 sec |
